Products Description
Powerful Solutions For Business Growth

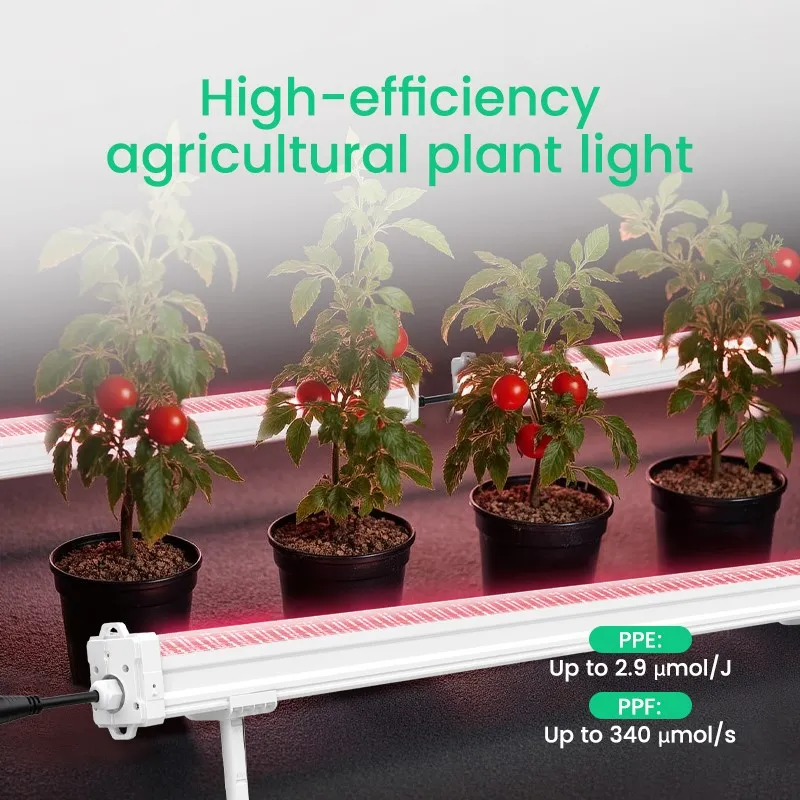

Optimize your indoor grow with the Under Canopy 120W. This advanced bottom lighting fixture provides two customizable spectrum options. By delivering targeted under-canopy illumination, it directly stimulates lower plant growth, improves yield quality, enhances light penetration, and fosters uniform development. Set it up on the ground with its stand or hang it (height adjustable via mounting holes) for versatile placement.
specifications
| Products name | UNDERCANOPY 120W LED |
| PPF | Up to 340 umol/s |
| Efficacy | Up lo 2.9 umol/J |
| Input Voltage | 120-220V 220-240V 240-277V 347V |
| Input Current | 1.0A 0.54A 0.5A 0.35A |
| Frequency | 50/60 Hz |
| Input Power | 120W |
| Fixture Dimensions(L*W*H) | 1157mm x 75mm x 85mm |
| Weight | 2.6 kg |
| Temperature Ambient | 95°F/35°C |
| Themal Management | Passive |
| Dimming Option | 40%-100%/ OFF with External Dimmer |
| Light Distribution | 120° |
| Lifespan | L90:>50.000hrs |
| Waranty | 5 years |
Key Features
1. High PPE & PPFD for Enhanced Growth
The Under Canopy 120W delivers exceptional photosynthetic efficiency (PPE) of up to 2.9 μmol/J and a PPFD output of 340 μmol/s/m², maximizing light absorption to accelerate plant growth.
2. Flexible Installation Options

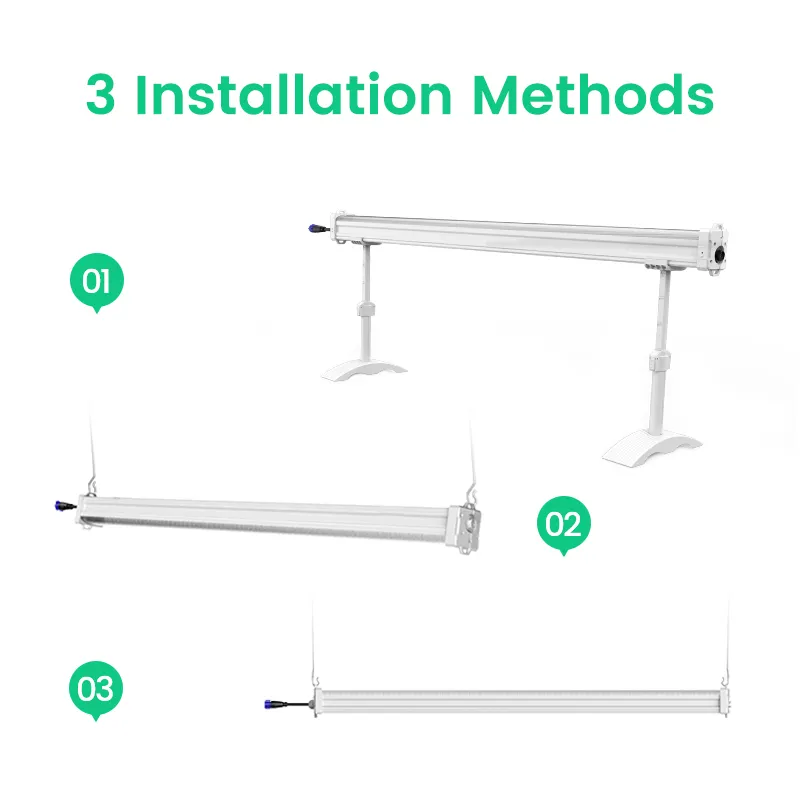

Three mounting configurations are available:
• Ground placement via support bracket
• Overhead suspension (upward/downward orientation)
• Vertical hanging with adjustable ropes
3. Series Connection Support
•120V: Up to 9 units
•240V: Up to 17 units
•277V: Up to 20 units
Daisy-chain controller connectivity supported.
Female/Male Port & Connector Multiple Connection Linkage
4.Two optional spectrum
Cannabis-Tailored Spectral Precision
Select from two specialized full-spectrum modes or request custom profiles. Validated PPE measurements:
•2.6 μmol/J (continuous operation)
•2.9 μmol/J (peak transient performance)
5. Customization Support
It can be customized to suit the customer's specific planting site and requirements. The supporting baskets can also be substituted with a Lance Hanger or an Adjusting Hanging Rope (YOYO Rope). These tailor-made solutions guarantee seamless and immediate deployment in agricultural facilities.
5.Optimized Indoor Cultivation Performance
Enhances lower-canopy development through targeted supplemental lighting, resulting in:
• Improved yield quality and cannabinoid production
• Increased canopy light penetration
• Uniform plant maturation
• Enhanced overall plant vigor
FAQ
1. Q: Does the Under Canopy LED 120W lamp only provide bottom lighting?
A: While standard under-canopy lamps solely target lower foliage, Westland's 120W features a unique dual-purpose design. Its integrated hanging points enable elevation when full-plant coverage is required, providing exceptional deployment flexibility.
2. Q: Can illumination be adjusted after daisy-chaining multiple units?
A: Conventional series-connected under-canopy lights lack dimming capabilities. Westland's solution incorporates proprietary controller technology that enables real-time intensity adjustment for any connected array - significantly enhancing user control and crop management.
3. Q: Why is disassembly safer with Westland's series connection?
A: Market-standard wireless connectors often cause fixture damage during disconnection due to rigid interfaces. Westland's wired system with quick-release knobs enables tool-free, damage-free reconfiguration - protecting your investment throughout the fixture lifecycle.
4. Q: What spectral options optimize cannabis cultivation?
A: We offer two dedicated full-spectrum profiles targeting vegetative growth and flowering stages respectively, with customizable spectral tuning. Verified PPE performance reaches 2.9 μmol/J (transient) and 2.6 μmol/J (steady-state) for maximum photosynthetic efficiency.
5. Q: Which installation methods support different grow setups?
A: Three configurations adapt to any facility:
• Ground mounting via support bracket
• Overhead suspension (upward/downward orientation)
• Vertical rope hanging with height adjustment
Our engineering team provides complimentary layout planning - contact info@westland.com for facility-specific recommendations.
