Products Description
Under Canopy 120W grow light is a forward-looking bottom lighting device. Suitable for indoor planting. With two optional spectrums, the spectrum can be customized to promote the growth of lower plants by providing under-canopy light, improve yield quality, enhance light transmittance, and promote uniform development of plants. It can be used on the ground through a bracket, or it can be hung through the hole to adjust the height and used at any time.
specifications
| Products name | UNDERCANOPY 120W LED |
| PPF | Up to 340 umol/s |
| Efficacy | Up lo 2.9 umol/J |
| Input Voltage | 120-220V 220-240V 240-277V 347V |
| Input Current | 1.0A 0.54A 0.5A 0.35A |
| Frequency | 50/60 Hz |
| Input Power | 120W |
| Fixture Dimensions(L*W*H) | 1157mm x 75mm x 85mm |
| Weight | 2.6 kg |
| Temperature Ambient | 95°F/35°C |
| Themal Management | Passive |
| Dimming Option | 40%-100%/ OFF with External Dimmer |
| Light Distribution | 120° |
| Lifespan | L90:>50.000hrs |
| Waranty | 5 years |
Key Features
1. High PPE and PPFD promote plant growth
Under Canopy 120W provide high PPE up to 2.9μmol/J and PPFD of 340μmol/s, ensuring maximum light absorption of plants.

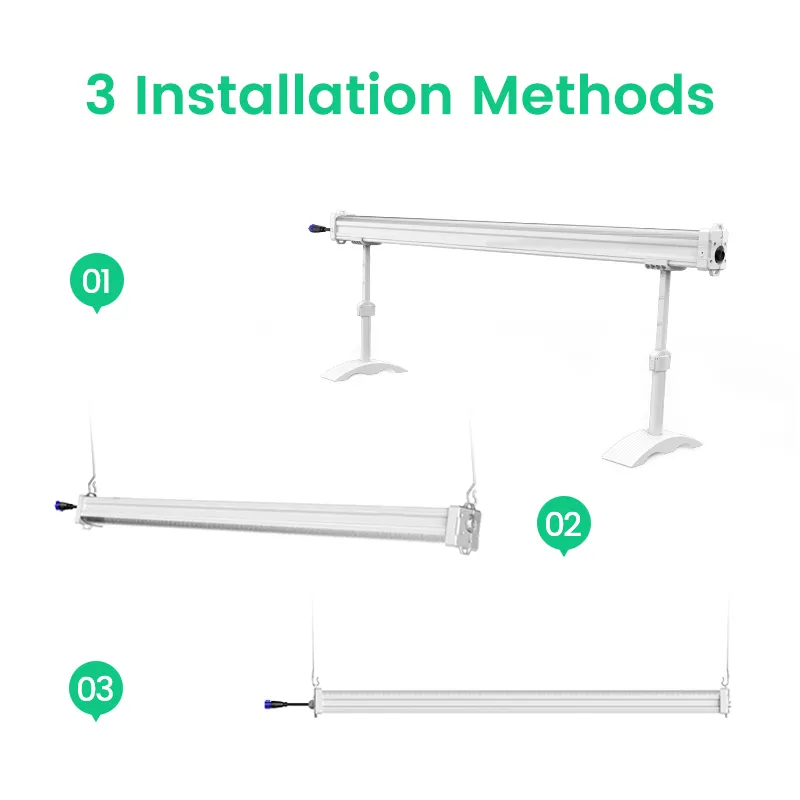

2. Easy Installation
3 mounting method for users to choose: Supporting Bracket Mounting. Hanging Rope Upwards Mounting. Hanging Rope Downwards Mounting.
3. Series Connection Support
Under 120v voltage, 9 Pcs can be connected in series. Under 240v, 17 Pcs be connected in series. Under 277v, 20 Pcs be connected in series.
Controller connection also support.
Female/Male Port & Connector Multiple Connection Linkage
4.Two optional spectrum
Full-spectrum lighting tailored for the needs of cannabis cultivation. There are two spectra to choose from, and they can also be customized according to needs. PPE can be used for actual measurement. Steady state: 2.6 umol. Transient 2.9 umol.
Spectrum Optional
5. Customization Support
It can be customized according to the customer's specific planting site and needs. The supporting barkets can also be replaced with Lance Hanger or Adjusting Hanging Rope (YOYO Rope). Tailor-made solutions ensure immediate deployment in agricultural facilities.
5. Suitable for indoor cultivation
Promote the growth of lower plants by providing under canopy lights, improve yield quality, enhance light penetration, and promote uniform development of plants. Ensure better production of cannabinoids and plant health.
FAQ
1. Q: Can the Under Canopy LED 120W lamp only provide light for the bottom of the plant?
A: The Under Canopy 120W lamps on the market can only provide light for the bottom, but the Westland Under Canopy 120W retains a special hanging design, which can be hung when the customer needs it.
2. Q: How to adjust the illumination after series connection?
A: All Under Canopy LED 120W lamp do not have the function of adjusting illumination, but Westland has developed technology to enable our under-plant lamps to directly adjust the illumination through the controller, which greatly improves the customer's experience.
3. Q: Why is it not easy to damage the lamp body when disassembling this Under Canopy LED 120W lamp series?
A: The wireless docking series connection on the market often causes the grower to inadvertently damage the lamp body due to the direct docking design during disassembly, which is very likely. The wired series design of Westland plant under-plant lights and the special knob design allow for quick installation without damaging the light body, bringing a better planting process to growers. It is our honor to solve your doubts. If you have other questions, please consult our information mailbox.
Case
Case Study: A grower in the United States was troubled by the fact that the plants grew too high and the supplementary lighting equipment could not reach the bottom of the plants.
Background: A grower in the United States wanted to solve the problem of insufficient light at the bottom of the plants.
Solution: The farm used Westland's Under Canopy 120W lights, which have a safe series interface, superior heat dissipation performance, and high-quality LED chips (Samsung, Osram, Everlight, BridgeLux, etc.). Westland also provided Dialux lighting design services to achieve precise light planning.
Results: The Under Canopy 120W lights worked well, perfectly solving the problem of insufficient supplementary light at the bottom of the plants, and significantly increasing the yield of cannabinoids. The farm highly praised Westland's technology and professional support and established a long-term partnership.
