Specification
| Products name |
80W Magnetic LED
|
|
Spectrum
|
Early, Bloom and Weight |
| PPF |
184 μmol/s
|
| PPE |
2.3 μmol/J
|
|
Input Voltage
|
110V 120V 208V 240V 277V
|
|
Input Current
|
0.73A 0.67A 0.39A 0.34A 0.29A
|
|
Frequency
|
50~60 Hz
|
|
Input Power
|
80W
|
|
Fixture Dimensions (L*W*H)
|
68.0cm×30.0cm×2.5cm
|
|
Weight
|
1.6KG |
|
Dimming Option
|
40% / 50% / 60% / 60% / 100% / EXT OFF
|
|
Light Distribution
|
120°
|
|
Lifespan
|
L90:>54,000hrs
|
|
Power Factor
|
≥0.97
|
|
Warranty
|
3 years |
| Waterproof Rate | IP65 |
Description

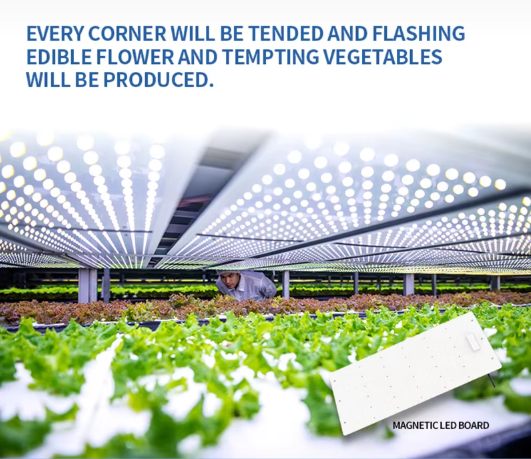

80W to 240W DIY Grow Lights for Hydroponics refers to our magnetic Quantum Board. It is a brand-new products from Shenzhen Westland Technology Co.,ltd. With 6 parallel magnetic sticker arranged on the both sides of quantum board. Users can easily install on metal rackings that used in vertical farm.
Our DIY Grow Lights for Hydroponics are equipped with a tee connector, which allow 80W DIY grow lights daisy chain into a set 3 pcs, total 240W.
And it have 3 channel to dim, users can dim color and spectrum by controller.
Key Features

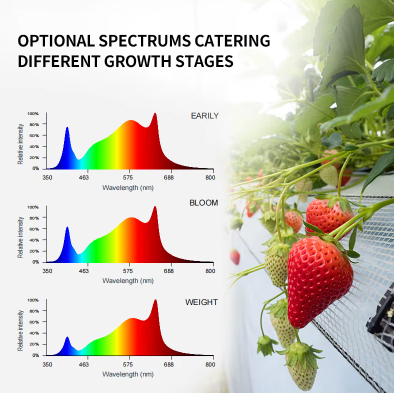

1. Accurately Choose Spectrum
Three spectrum schemes are provided. In the early stage of plant growth, the red and blue light ratio spectrum can accurately promote stem and leaf cell division and cultivate strong seedlings; switch to full spectrum mode in the flowering stage to simulate the natural sunlight spectrum and stimulate flower bud differentiation; use far-infrared enhanced spectrum in the fruiting period, which can effectively promote fruit enlargement and sugar accumulation. Through the matching intelligent controller, users can switch spectrums with one click, adjust light intensity with an accuracy of 1%, and set cyclic timing tasks to achieve flexible and accurate light management from sowing to harvesting.
2. Magnetic sticker design, easy to install
The innovative parallel magnetic stickers structure does not require any additional tools during the installation process. Just approach the metal bracket in the multi-layer planting system, and the strong magnetic suction stickers will automatically and accurately align and adsorb, and one person can complete the installation in seconds. This design not only greatly reduces the cost and time of manual installation, but also makes it easier to quickly adjust the position and layout of lamps in complex three-dimensional planting environments to meet the needs of different plant growth stages for light angles. It is especially suitable for the construction and daily maintenance of vertical farms with compact space and complex structures.
3. Daisy Chain Support
It not only support 3 pcs daisy chain, but also with muiti-pieces daisy chain functions, which allows up to 80 pcs to be connected end to end through a dedicated cable, easily covering large planting areas. After series connection, only one power interface is required for power supply, which greatly simplifies the wiring process and reduces the potential safety hazards of electricity use. In large vertical farms or container farms, this function significantly enhances the scalability of the system. Users can flexibly increase or decrease the number of lamps according to the scale of cultivation. At the same time, the unified power management mode can effectively reduce energy consumption costs and improve operational efficiency.
4. Controller Connection
Compatible with mainstream smart agricultural controllers, remote centralized management can be achieved through RS485, Wi-Fi and other communication protocols.
5. Customizing available
We have a professional customized service team to deeply analyze the customer's personalized needs such as bracket system structure, planting layout, crop type, etc. From lamp size, installation interface to spectral parameters and control protocol, targeted design can be carried out.
6. Excellent Efficacy

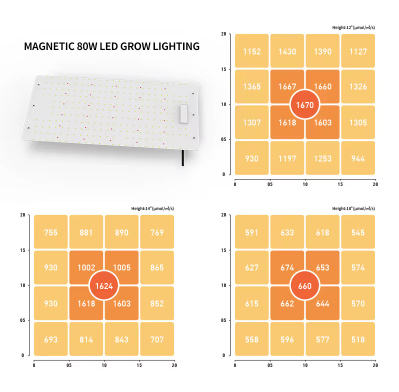

Using cutting-edge optical technology and high-efficiency LED chips, the product achieves a high PPE of up to 2.3μmol/J, which is about 30% higher than traditional plant supplementary lights, and the efficiency of converting each joule of electrical energy into light energy is significantly enhanced. At the same time, PPFD of 184μmol/s can cover the light intensity threshold required by the plant canopy, ensuring that the plant leaves can absorb effective photosynthetic radiation to the greatest extent. Whether it is a sun-loving crop or a shade-tolerant variety, this product can provide sufficient energy for plant photosynthesis, promote rapid plant growth, shorten the growth cycle, and effectively improve crop yield and quality.
FAQs
Q: What crops it suits?
A: Our DIY grow lights for hydroponics well applied in vertical farm & container farm leafy, strawberry, short tomato, herbs and microgreen.
Q: Are LED grow lights a fire hazard?
A: No, please rest assure. DIY grow lights for hydroponics equipped with aluminum plate passive heat dissipation, and it's absolutely safe with CE, RoHS, ETL, DLC certified.
Q: How close to put led grow lights?
A: It depends on the racks, usually it is suggested at least 12'' (30.48cm).
